102D UTILITY GAUGE - CENTER BACK MOUNT


From TCI, INC.

Utility gauge for commercial and industrial markets
Black steel case, chrome bezel, copper alloy internals

  • Specifications
  • Dimensions
  • Available Options
  • Packaging Details
  • Odering Guide

Specifications

102D UTILITY PRESSURE GAUGE
SPECIFICATIONS
Dial 1 1/2" (40 mm), 2" (50 mm), 2 1/2" (63 mm),
3 1/2" (88 mm), 4 1/2" (114 mm)
Case Black steel, dry non-fillable
Wetted Parts Copper alloy
Bezel Chrome plated steel, fixed
Lens Plastic
Pointer Black aluminum
Connection Center back mount
1 1/2" dial = 1/8" NPT
2" dial = 1/8" or 1/4" NPT
2 1/2" dial = 1/4" NPT
3 1/2" dial = 1/4" NPT
4 1/2" dial = 1/4" NPT
Scale Standard: psi/BAR (x 100 = kPa)
Accuracy 3-2-3% of span, ASME B40.1 Grade B
Ambient Temp -50° F to 160° F

Design meets or exceeds ASME B40.100 pressure gauge standard.

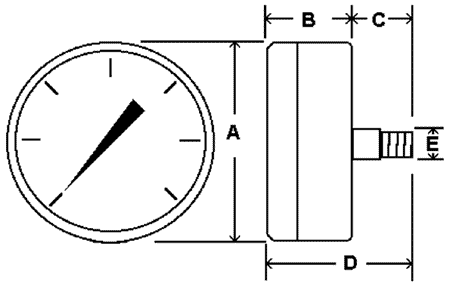

Dimensions

102D UTILITY PRESSURE GAUGE
Dial Unit A B C D E
1 1/2" In. 1.64" 0.93" 0.63" 1.54" 1/8" NPT
mm 42 24 16 39
2" In. 2.07" 1.03" 0.89" 1.90"

1/8" or 1/4"
NPT

mm 53 26 23 48
2 1/2" In. 2.5" 1.17" 0.90" 1.97" 1/4" NPT
mm 63 30 23 50
3 1/2" In. 3.49" 1.22" 0.83" 2.02" 1/4" NPT
mm 89 31 21 51
4 1/2" In. 4.5" 1.31" 0.94" 2.18" 1/4" NPT
mm 114 33 24 55



Available Options

CENTER BACK MOUNT PRESSURE GAUGE
AVAILABLE OPTIONS*
  • Certificate of Accuracy, NIST traceable
  • Custom Dial
  • Anti-Vibration Movement
  • Glass Lens
  • Stainless Steel Case
  • Cleaned for Oxygen Service
  • Special Connection Size
  • Protective Rubber Cover
  • Max/Min Pointer

*Lead times/minimums may apply



Packaging Details

102D UTILITY GAUGE CENTER BACK MOUNT
APPROXIMATE SHIPPING WEIGHTS/ BOX QUANTITIES
Dial Size Est. Unit Weight Box Qty
1 1/2" 0.20 lbs
(0.10 kg)
200
2" 0.26 lbs
(0.13 kg)
100
2 1/2" 0.34 lbs
(0.17 kg)
125
3 1/2" 0.45 lbs
(0.22 kg)
50
4 1/2" 0.65 lbs
(0.30 kg)
25



Odering Guide
