214D REMOVABLE BEZEL FRONT FLANGE PANEL MOUNT


From TCI, INC.

Dry yet fillable gauge with removable bezel, adjustable pointer
Stainless steel case and bezel, copper alloy internals

  • Specifications
  • Dimensions
  • Available Options
  • Packaging Details
  • Odering Guide

Specifications

214D SPECIFICATIONS
SPECIFICATIONS
Dial 2 1/2" (63 mm)
Case Stainless steel, dry yet fillable
Wetted Parts Copper alloy
Bezel Removable, stainless steel
Lens Glass
Pointer Adjustable, black aluminum
Connection Center back mount with front flange 1/4" NPT
Scale Standard: psi/BAR (x 100 = kPa)
Accuracy 2-1-2% of span ASME B40.1 Grade A
Ambient Temp Dry = -30° F to 180° F
Glycerine Filled = 30° F to 160° F























Design meets or exceeds ASME B40.100 pressure gauge standard.

Dimensions

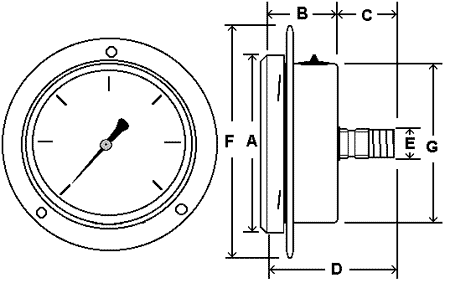

214D DIMENSIONS
Dial Unit A B C D E F G
2 1/2" In. 2.83" 1.42" 1.06" 3.54" 1/4" NPT 3.45" 2.48"
mm 72 35 25 58 88 63



Available Options

214D OPTIONS
AVAILABLE OPTIONS*
  • Certificate of Accuracy, NIST traceable
  • Custom Dial
  • Liquid Fill Options
  • Anti-Vibration Movement
  • Cleaned for Oxygen Service (dry only)
  • Special Connection Size
  • Plastic Lens
  • Max/Min Pointer

*Lead times/minimums may apply

Packaging Details

214D SHIPPING AND PACKAGING
APPROXIMATE SHIPPING WEIGHTS/ BOX QUANTITIES
Dial Size Est. Unit Weight Box Qty
2 1/2" 0.55 lbs
(0.25 kg)
50
