DIGITAL PRESSURE GAUGE


From TCI, INC.

General purpose digital pressure gauge, backlit LED display for clear, concise readings

  • Specifications
  • Dimensions
  • Available Options
  • Packaging Details

Specifications

DIGITAL PRESSURE GAUGE SPECIFICATIONS
SPECIFICATIONS
Dial 3" (76 mm)
Case Black aluminum
Display 4 digits standard
Wetted Parts 304L & 316L stainless steel
Ranges Standard ranges from 30" hg vac to 5,000 psi
Connection Lower mount 1/4" NPT for 3"
Measurement Units psi, BAR, MPa
Accuracy 0.25% of span on 3" ASME B40.1 Grade 3A
Ambient Temp 14° F to 140° F
Power Supply 9 volt battery
Functions Zero reset Backlight Peak/Hold



























Design meets or exceeds ASME B40.100 pressure gauge standard.



Dimensions

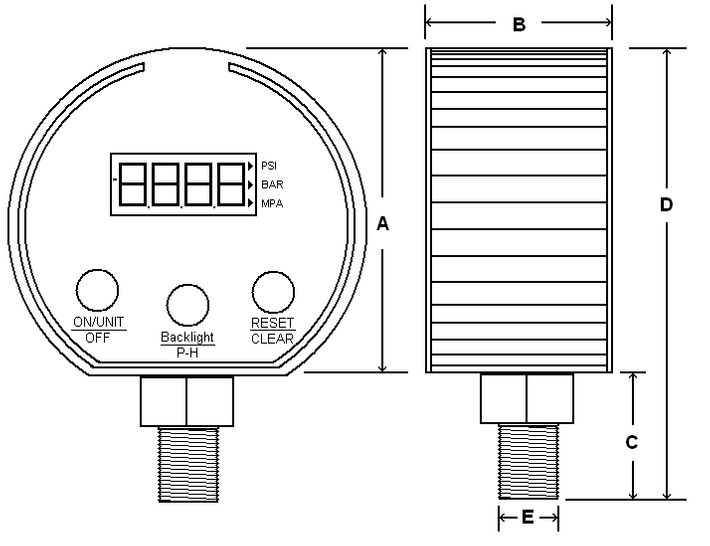

DIGITAL PRESSURE GAUGE DIMENSIONS
Dial Unit A B C D E
3" In. 3.35" 2.03" .92" 4.21" 1/4" NPT
mm 85 52 23 107



Dial Size Standard Part Numbers
3" DPG-254L (RANGE CODE)



Stock Ranges
A = 30/0" Hg Vac L = 0/800 psi
E = 0/100 psi M = 0/1000 psi
H = 0/300 psi P = 0/3000 psi
R = 0/5000 psi



Available Options

DIGITAL PRESSURE GAUGE AVAILABLE OPTIONS
AVAILABLE OPTIONS*
  • Certificate of Accuracy, NIST traceable
  • Protective Rubber Cover
  • Special Connection Size

*Lead times/minimums may apply

Packaging Details

DIGITAL PRESSURE GAUGE SHIPPING AND PACKAGING
APPROXIMATE SHIPPING WEIGHTS/ BOX QUANTITIES
Dial Size Est. Unit Weight Box Qty
3" 1.10lbs
(0.50 kg)
upon request
