1" MINI BOURDON TUBE GAUGE


From TCI, INC.

Miniature gauge for applications where space constraints are a concern Suitable for air, water, oil, gas or other media not corrosive to Copper alloy

  • Specifications
  • Dimensions
  • Available Options
  • Packaging Details

Specifications

1" MINI BOURDON TUBE GAUGE SPECIFICATIONS
SPECIFICATIONS
Dial 1" (25.4 mm)
Case Black plastic, dry non-fillable
Wetted Parts Copper alloy
Ranges 0/30, 0/60, 0/100, 0/160 psi
Lens Plastic
Pointer Black aluminum
Connection Center back mount
1/8" NPT with 10/32" tap
Scale Standard: single scale psi
Accuracy 3-2-3% of span, 1" ASME B40.1 Grade B
Ambient Temp     Dry = -30° F to 180° F

























Design meets or exceeds ASME B40.100 pressure gauge standard.

Dimensions

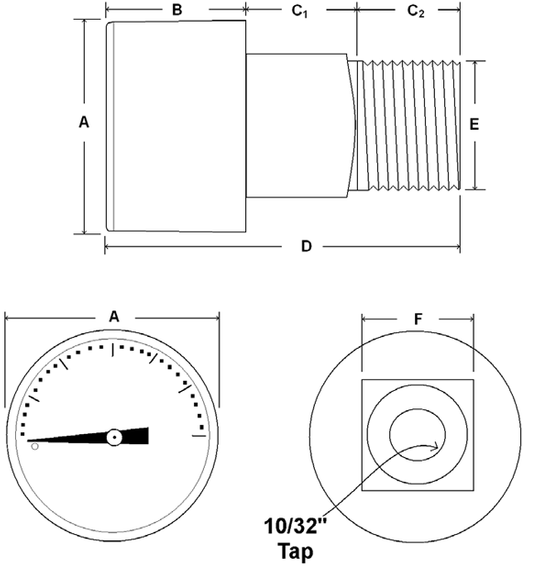

1" MINI BOURDON TUBE GAUGE DIMENSIONS
Dial Unit A B C D E F G
1" In. 0.98" 0.58" 0.34" 0.28" 1.21" 1/8" NPT 0.47"
mm 25 15 9 7 31 12



Available Options

1" MINI BOURDON TUBE GAUGE AVAILABLE OPTIONS
AVAILABLE OPTIONS*
  • Custom Dial
  • Special Connection Size
  • Other Ranges
  • Built-in Snubber

*Lead times/minimums may apply

Packaging Details

1" MINI BOURDON TUBE GAUGE SHIPPING AND PACKAGING
APPROXIMATE SHIPPING WEIGHTS/ BOX QUANTITIES
Dial Size Est. Unit Weight Box Qty
1" 0.05 lbs
(0.02 kg)
upon request
